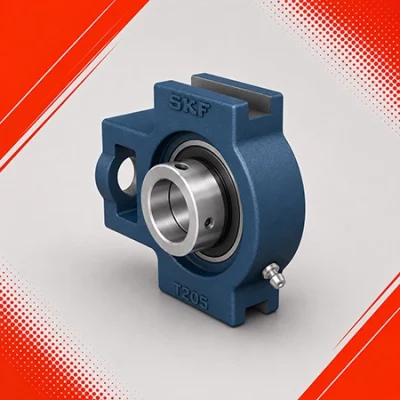

Take-Up Ball Bearing Unit
Take-Up Ball Bearing Unit Supplier
Product Description
We provide top-notch solutions designed to satisfy a variety of industrial purposes if you’re looking for a trustworthy and knowledgeable Take-Up Ball Bearing Unit supplier in Kolkata, Bihar, Odisha, Jharkhand, Chhattisgarh, and Assam. We provide high-performance bearing units that guarantee seamless operation, decreased downtime, and better productivity across a variety of sectors thanks to our robust supply network and years of experience. Our Take-Up Bearing Units are perfect for heavy-duty, continuous operations in demanding situations since they are designed with cutting-edge technology and premium materials.
Ankit Enterprise is a trusted Take-Up Ball Bearing Unit Supplier in Kolkata, offering high-quality bearing solutions across West Bengal, Bihar, Odisha, Jharkhand, Chhattisgarh, and Assam. We specialize in supplying precision-engineered take-up units designed for adjustable shaft positioning, smooth operation, and long-lasting performance in various industrial environments. Our products are widely used where belt tensioning and shaft alignment adjustments are essential for efficient machinery performance.
Advanced Features and Advantages
- Sturdy and Robust Design : Our take-up units are made of stainless steel, ductile iron, or high-strength cast iron and are designed to endure heavy loads and challenging industrial environments.
- Superior Capability for Managing Loads : Designed to effectively handle axial and radial loads, guaranteeing steady and vibration-free operation.
- Resistance to Wear and Corrosion : These devices can be used in locations that are exposed to dust, chemicals, and moisture thanks to unique coatings and material choices.
- Simple Installation and Modification : A sliding mechanism saves time and labor expenses by enabling rapid belt tensioning and alignment without the need for complicated instruments.
- Extended Life of Service : Precision-engineered parts are more durable and require fewer replacements because they reduce wear and friction.
- Minimal Upkeep Needed : Pre-lubricated bearings and effective sealing systems lower operating expenses and maintenance requirements.
Advantages of Selecting the Appropriate Take-up Ball Bearing Unit
Choosing the appropriate Take-Up Ball Bearing Unit can:
- Boost the effectiveness of conveyors
- Cut down on equipment downtime
- Reduce the cost of maintenance
- Improve the safety of operations
- Boost total output
Technical Specifications of Take-Up Ball Bearing Units
- Bearing Type: Insert Bearing (Deep Groove Ball Bearing)
- Housing Type: Take-Up Housing (Cast Iron / Steel)
- Shaft Diameter Range: 20 mm to 100 mm (varies by model)
- Mounting Type: Sliding frame / adjustable mounting
- Locking System: Set screw / Eccentric locking collar
- Lubrication: Pre-lubricated with re-greasing provision
- Sealing Type: Contact seals / Triple lip seals
- Load Type: Radial load with moderate axial load
- Temperature Range: Suitable for standard industrial conditions
Technical Chart of Take-Up Ball Bearing Units
|
Shaft Size (mm) |
Unit Model |
Bearing Series |
Frame Type |
Adjustment Type |
Weight (Approx) |
|
20 mm |
UCT204 |
UC204 |
Light Duty |
Sliding |
0.90 kg |
|
25 mm |
UCT205 |
UC205 |
Standard |
Sliding |
1.10 kg |
|
30 mm |
UCT206 |
UC206 |
Standard |
Sliding |
1.50 kg |
|
35 mm |
UCT207 |
UC207 |
Medium |
Adjustable |
2.00 kg |
|
40 mm |
UCT208 |
UC208 |
Medium |
Adjustable |
2.50 kg |
|
50 mm |
UCT210 |
UC210 |
Heavy Duty |
Adjustable |
3.50 kg |
Note: Specifications may vary depending on brand and application requirements.
Technical Details
- Designed for axial adjustment and belt tension control
- Insert bearings provide self-alignment capability
- Housing ensures stable and secure mounting
- Suitable for continuous operation in dusty and high-load environments
- Easy replacement and maintenance reduce downtime
- Available in customized configurations based on application needs
Why We Are the Go-To Source
- Robust Local Presence : We guarantee prompt availability and local assistance in Kolkata, Bihar, Odisha, Jharkhand, Chhattisgarh, and Assam.
- Superior Quality Control : Strict quality inspections are performed on all products to ensure they meet both national and international requirements.
- Competitive Costs : We are the go-to option for large purchasers because we provide affordable solutions without sacrificing quality.
- Quick and Dependable Delivery : Timely delivery across all key industrial hubs is guaranteed by an effective logistics network.
Get in touch for competitive prices
For Ball Bearing Units in Kolkata, Bihar, Odisha, Jharkhand, Chhattisgarh, and Assam, we are your go-to partner. We are dedicated to providing exceptional quality and service, whether you require standard items or customized solutions.
